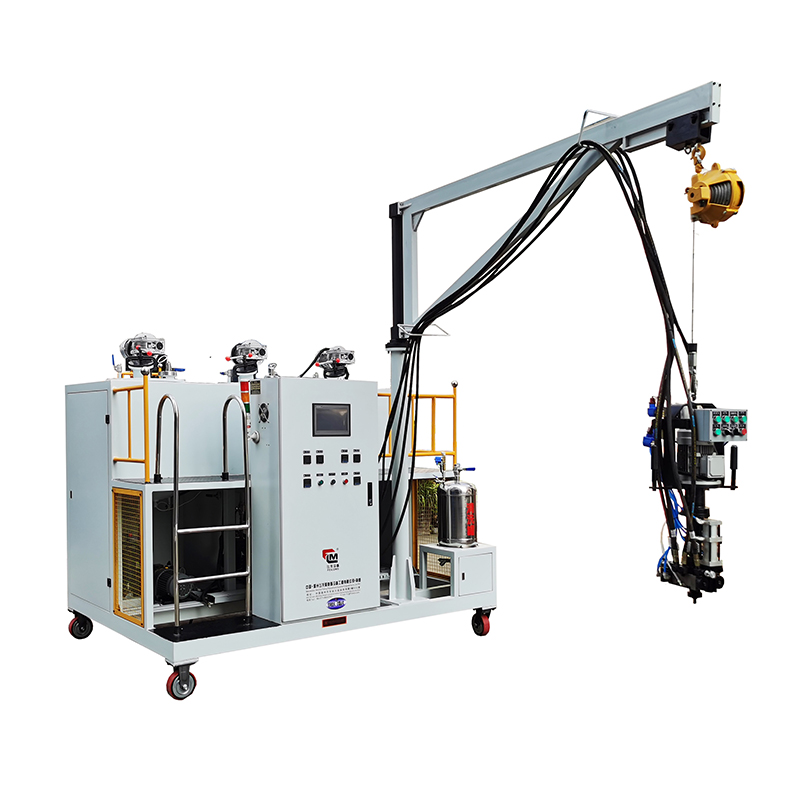

聚氨酯低压发泡机
For the production of rigid, semi-rigid, or soft polyurethane products. Such as sofa cushion, car motorcycle seat cushion, instrument panel, refrigerator, tube tube and active cold storage board.
-Accurate measurement, using high precision low speed gear pump, error of 5‰.
-Mix evenly, using high shear mixing head, reliable performance.
-Casting head, using special mechanical seal, no air leakage, prevent feeding.
-The material temperature is stable, the material tank adopts their own heating temperature control system, the temperature control is stable, the error is <+ 2℃.
-The whole machine is controlled by touch screen and PLC module, which can be poured regularly and quantitatively and washed automatically.
Model / Type | Y1 | Y 2 | Y 3 | Y 4 | Y 5 | Y 6 | R1 | R 2 | R 3 | R 4 | R 5 | R 6 |
Rigid foam foaming machine | Soft foam foaming machine | |||||||||||
Output capability (g / min) | 16~66 | 66~200 | 133~333 | 250~666 | 333~1000 | 666~2000 | 16~66 | 66~200 | 1333~333 | 250~666 | 333~1000 | 666~200 |
Component name | Mixing ratio (adjustable) | Operating temperature (℃) | dynamic viscosity (CPS) |
A viscosity (CPS) | 100 | Normal temperature ~100 | ~2000 |
B(isocyanate) | 80~120 | Normal temperature ~100 | <1000 |
