(高铁垫块、汽车缓中器)微孔弹性体浇注机系列

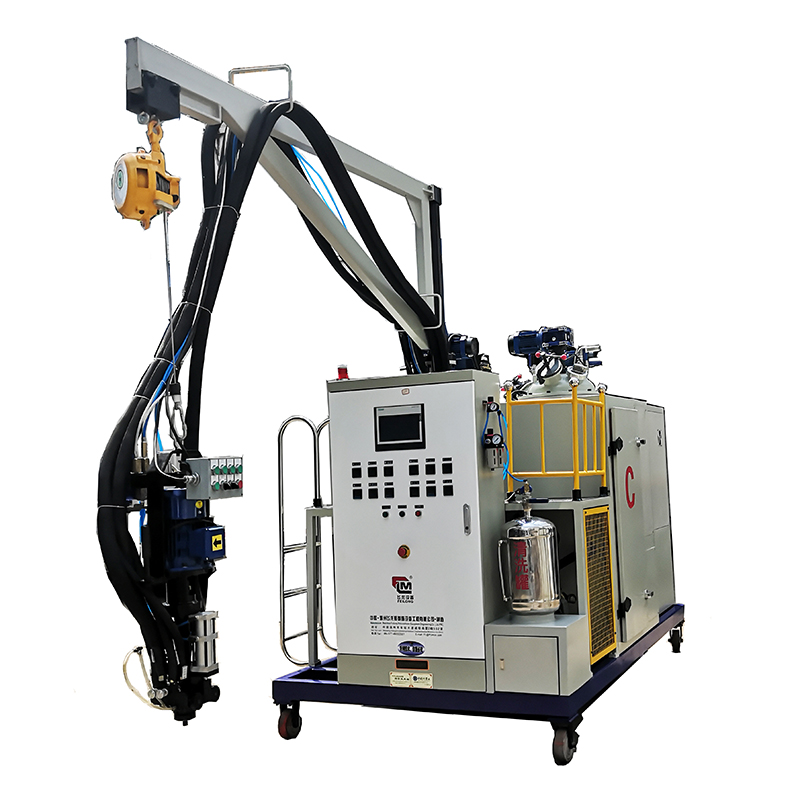

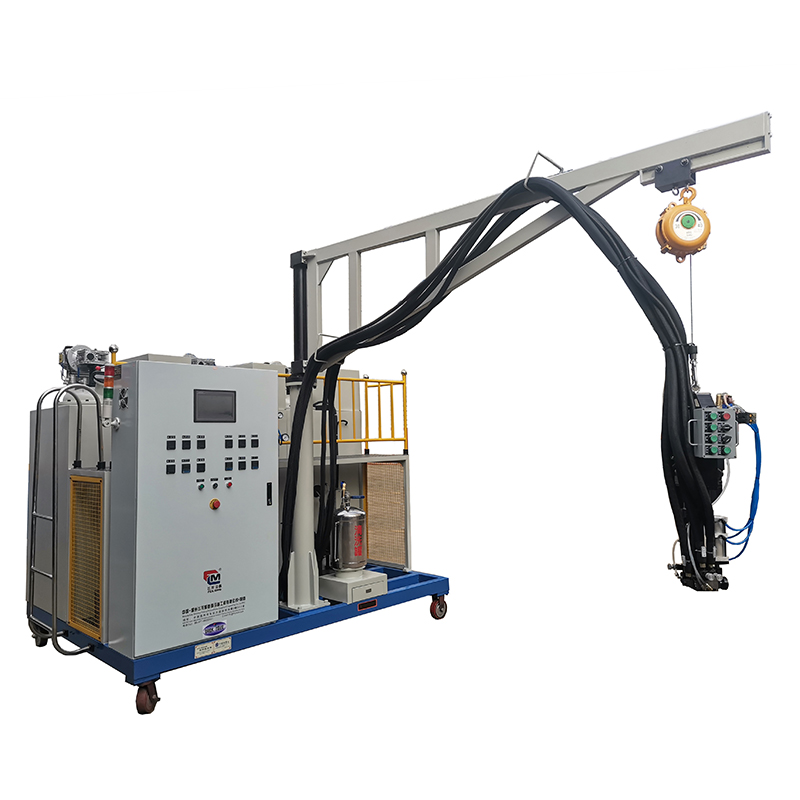

HIGHSPEED IRON PAD, CAR BUFFER)MICROHOLE ELASTOMER CASTING MACHINE SERIES

For the production of polyurethane microporous elastomer products. High-speed rail pad, automobile shock absorber has light constitution, deformation, impact resistance, easy molding, good folding resistance, is excellent elasticity, with high density and strength of microporous materials.

Contact

Main uses

For the production of polyurethane microporous elastomer products. High-speed rail pad, automobile shock absorber has light constitution, deformation, impact resistance, easy molding, good folding resistance, is excellent elasticity, with high density and strength of microporous materials.

Product features

-Accurate measurement, using high precision low speed gear pump, error of 5 ‰.
-Mix evenly, using high shear mixing head, reliable performance.
-Pour head, using floating mechanical seal, no air leakage, prevent feeding.
-The material temperature is stable, using multi-point temperature control, stable temperature control, error <± 2℃.
-The whole machine adopts LCD screen, PLC module control, can be pouring and automatic cleaning and air flushing.

Parameters

Model / Type	PU20 / 30F-X1	PU20 / 30F-X 2	PU20 / 30F-X 2
Output capability (g / min)	5~50	2606~106.6	66.6~333.3

Process parameters

Component name	Mixing ratio (adjustable)	Operating temperature (℃)	viscosity (CPS)
A(polyol)	100	40~60	<3000
B(MDI Sempremer)	80~120	40~60	<2000

Product examples
