环氧树脂灌注机

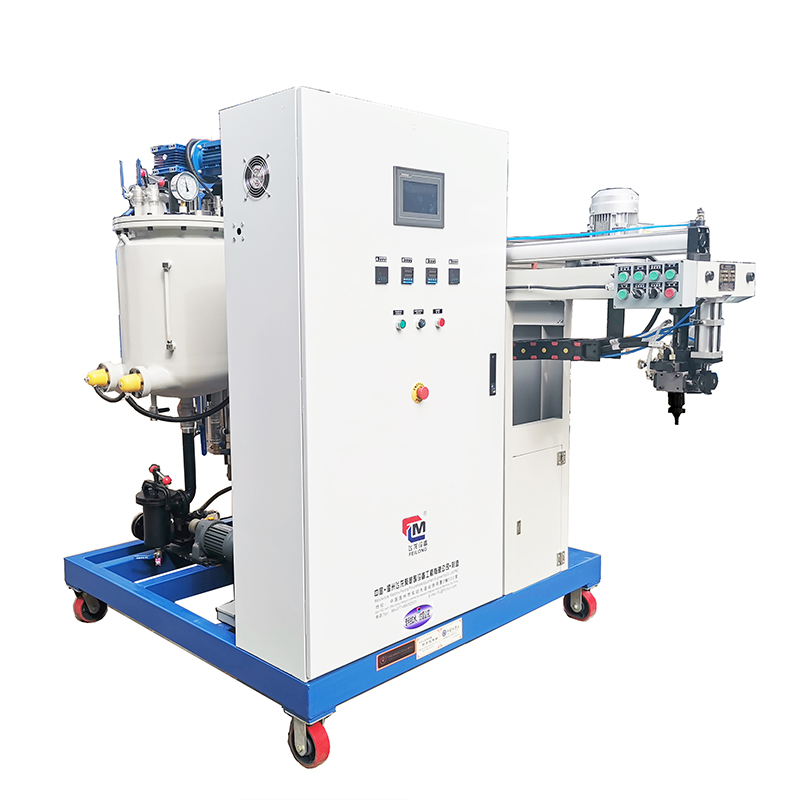

Special equipment designed for the production of epoxy resin products. For printing roller, wind power blade, high pressure fire wire bag, sailing rudder, sailing board, etc....
-Accurate measurement, using high precision low speed gear pump, error of 5 ‰.
-Mix evenly, using high shear mixing head, reliable performance.
-Casting head, using special mechanical seal, no air leakage, prevent feeding.
-The material temperature is stable, the material tank adopts their own heating temperature control system, stable temperature control, error <± 2℃.
-The whole machine adopts 10-inch touch screen and controlled by PLC module, which can be poured regularly and quantitatively and washed automatically.
-Can choose the He service motor, flowmeter control.
Model / Type | EP20F-J4 | EP20F-J5 |
Output capability (g / s) | 1~7 | 5~15 |
Component name | Mixing ratio (adjustable) | Operating temperature (℃) | viscosity (CPS) |
A(Epoxy resin fill) | 100 | 50~95 | 150~2500 |
B(epoxy hardener) | 10~35 | 50~95 | 150~2500 |
