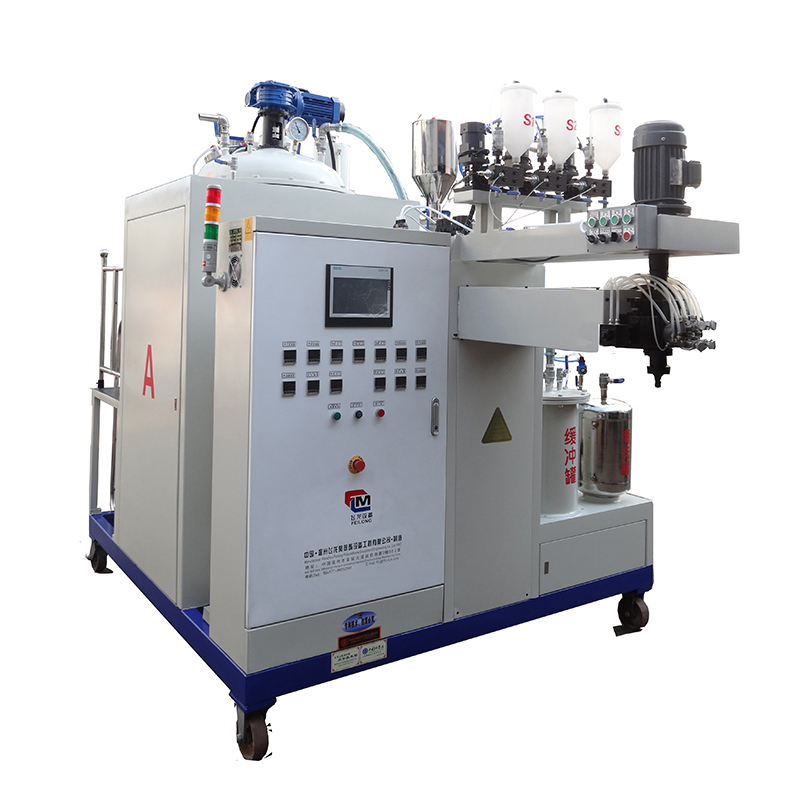

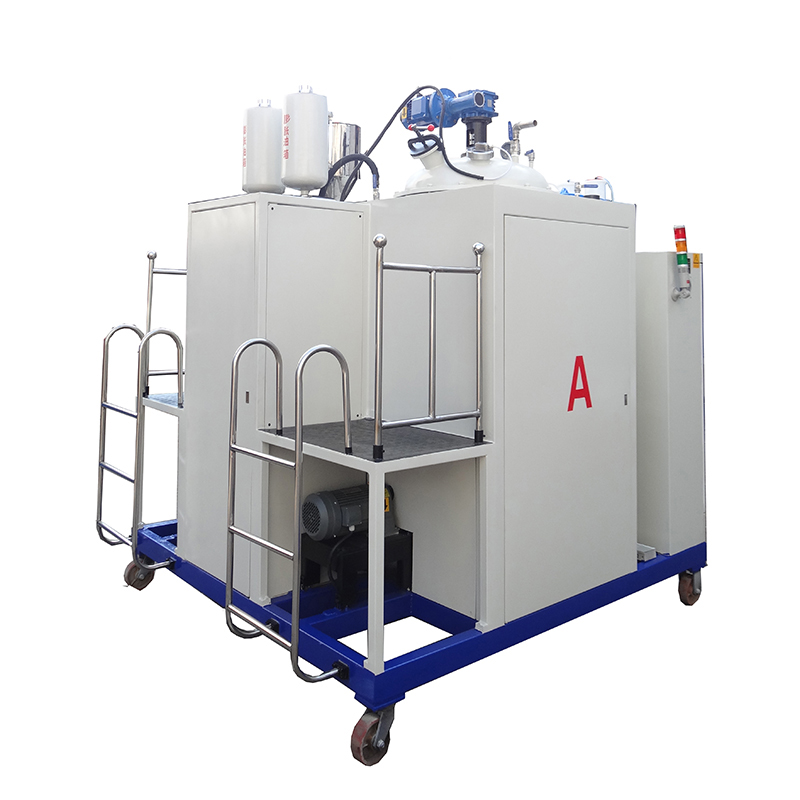

PU ELASTOMER CASTING MACHINE (OIL HEATING)

It is used for the production of pouring polyurethane elastomer products with MOCA or BDO as chain extender, such as industrial rubber roller, mining screen plate, hydraulic sealing ring, photovoltaic guide wheel, automotive steering shaft ball bowl, oil cleaner, current cyclone, transportation pipeline inner village, etc.

联系我们附件下载

主要用途

产品特点

-The whole oil bath, active heating, uniform temperature without dead Angle, suitable for temperature-sensitive materials;
-Hard pipe material removal, free from pressure fluctuations, and stable delivery;
-Good insulation effect, especially suitable for cold places in winter;
-Silent type vacuum pump, small and beautiful;
-Humanized design of feeding and maintenance platform;

主要参数

Model / Type	CPU20 / 30F(S)-Y1	CPU20 / 30F(S)-Y2	CPU20 / 30F(S)-Y3	CPU20 / 30F(S)-Y4	CPU20 / 30F(S)-Y5
Output capability (g / min)	200~800	1000~3000	2000~5000	3000~8000	5000~15000

工艺参数

Component name	Mixing ratio (adjustable)	Operating temperature (℃)	dynamic viscosity (CPS)
A(performed polymer)	100	60~100	<5000
B(MOCA or BDO)	5~20	80~125	<500
S(Color or additive )	0.3~1	normal temperature	50~2000
