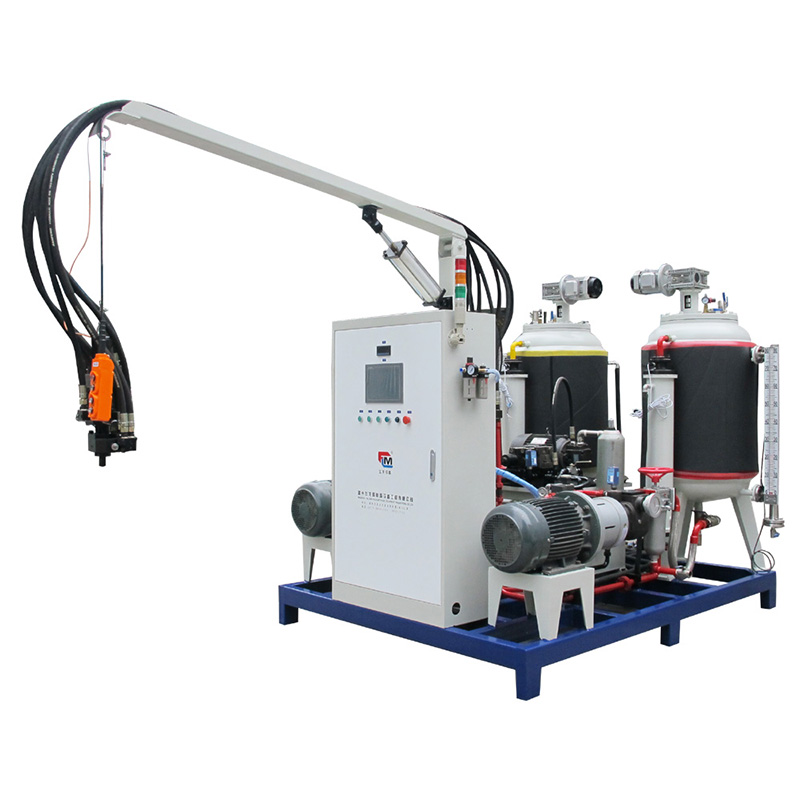

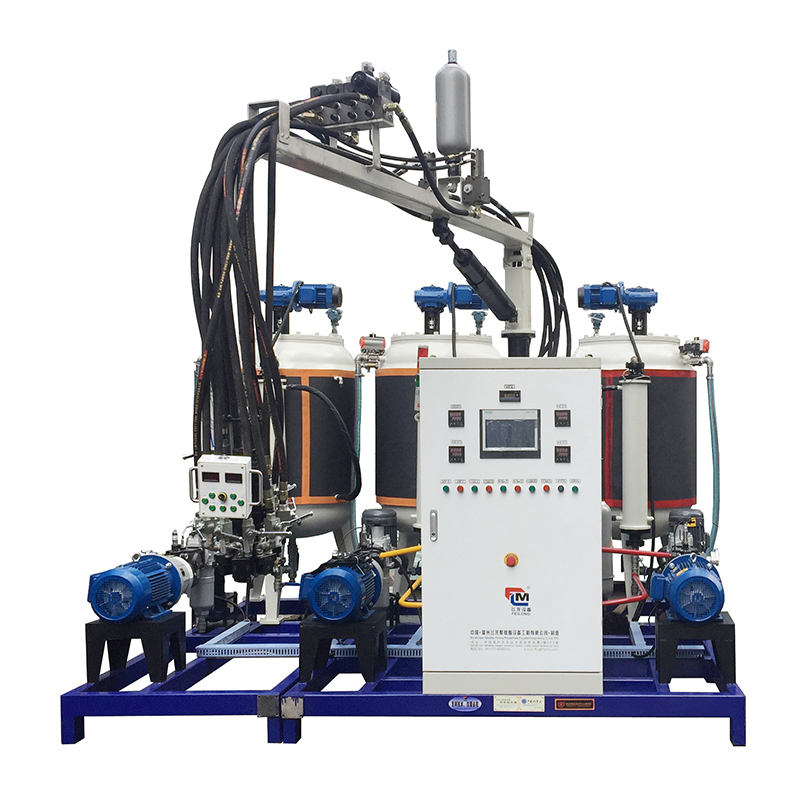

PU HIGH PRESSURE FOAMING MACHINE

Used for producing hard, semi hard or soft polyurethane products, refrigerators and freezers, car and motorcycle seat cushions, instrument panels, insulation pipes, building material sandwich panels, furniture, etc.

Contact

Main uses

Used for producing hard, semi hard or soft polyurethane products, refrigerators and freezers, car and motorcycle seat cushions, instrument panels, insulation pipes, building material sandwich panels, furniture, etc.

Product features

-Accurate measurement, using high-precision measuring devices to ensure measurement accuracy of s1%, the metering pump adopts magnetic connection, never leaking.
-Mixing device, using L-shaped high-pressure self-cleaning mixing head, adjustable nozzle aperture, high-pressure forming mist and uniform mixing
-The high and low pressure circulation switching device switches between working and not working, with a long service life.

The temperature device adopts a cold and hot integrated machine to control constant temperature, with an error of less than 2C.
-Electrical control, using a 10 inch touch screen, PLC module control, controlling temperature, pressure, and pouring flow rate, storing 99 formulas, with a high degree of automation.

Parameters

Item/Type	PU22F-10	PU22F-20	PU22F-60	PU22F-100	PU22F-200
Total capacity/Output	16~166	83~333	166~1000	333~1666	666~3333

Process parameters

Component name

Mixing ratio (adjustable)

Operating temperature (℃)

dynamic viscosity (CPS)

A(polyether polyol)

1~5

20~25

<3000

B(isocyanate)

5~1

20~25

<3000

Product examples
