汽车滤芯密封条专用设备系列

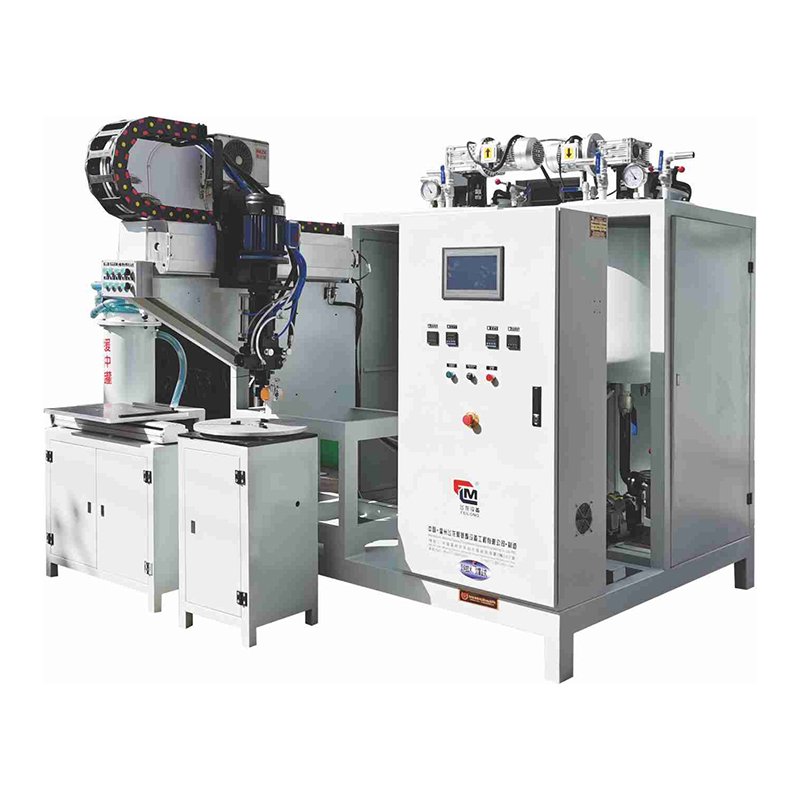

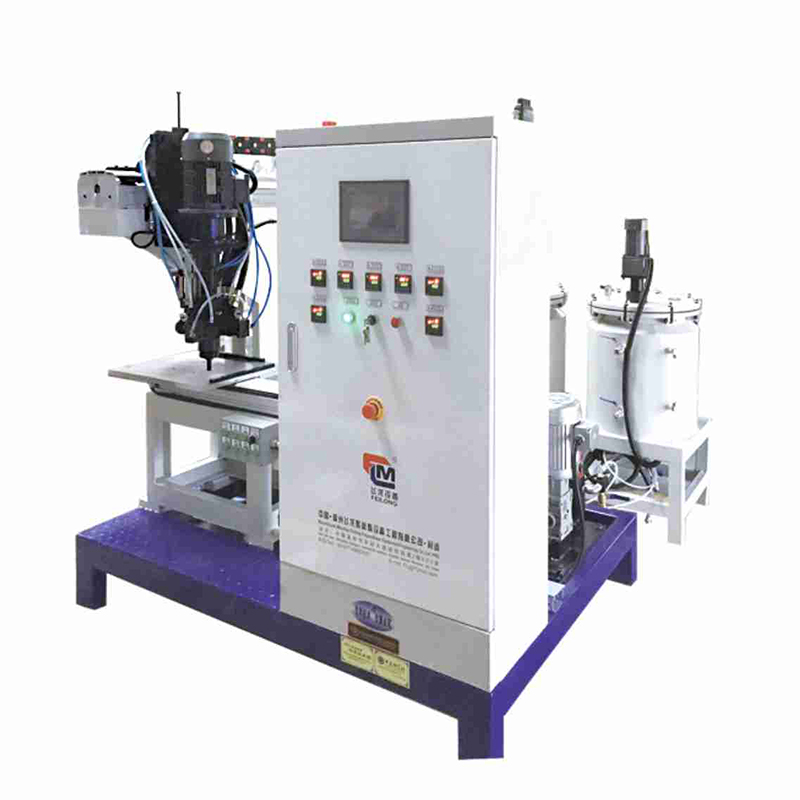

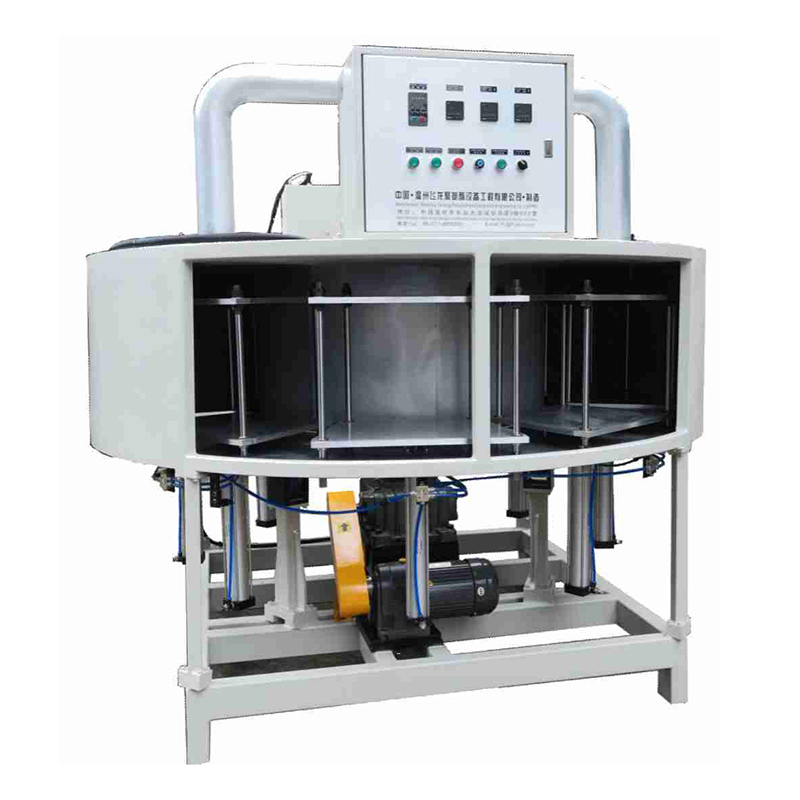

TARGETED MACHINE SERIES FOR AUTOMOBILE FILTER ELEMENT SEAL STRIP

Feilong company specializes in the design of complete sets of polyurethane filter sealing strip (pad) for the process requirements of automobile air filter products and indoor air filter products. The equipment is professional and strong.

联系我们附件下载

主要用途

产品特点

-Equipment measurement is accurate, and the system accuracy is 5 ‰.
-Uniform mixing, stable adhesive strip performance, long service life.
-Independent design head floating mechanical seal pouring head works continuously for several hours without hot, long-run operation without cross material.
-New program control system, convenient operation, can be solid square, shaped round and other irregular filter elements and other production process requirements.
-Imported walking mechanism, high working precision, longer life, more stable walking.
-With a special mixing device, so that the production does not drop material, improve product quality.
-The whole machine is modular, processing a variety of raw materials and colors to make the product diversification.
-The assembly line can realize the automatic opening and closing of the die, with high yield and stable quality.

主要参数

Model / Type	PU20F-LR1Y / F	PU20F-LR 2Y / F	PU20F-LR 3Y / F
Output capability (g / min)	2~5	5~20	610~40
Maximum square size (L*W) (mm)	400*300	500*400	1200*700
Round maximum diameter (mm)	Φ300	Φ350	Φ 700
