铁路、桥梁填缝专用设备系列

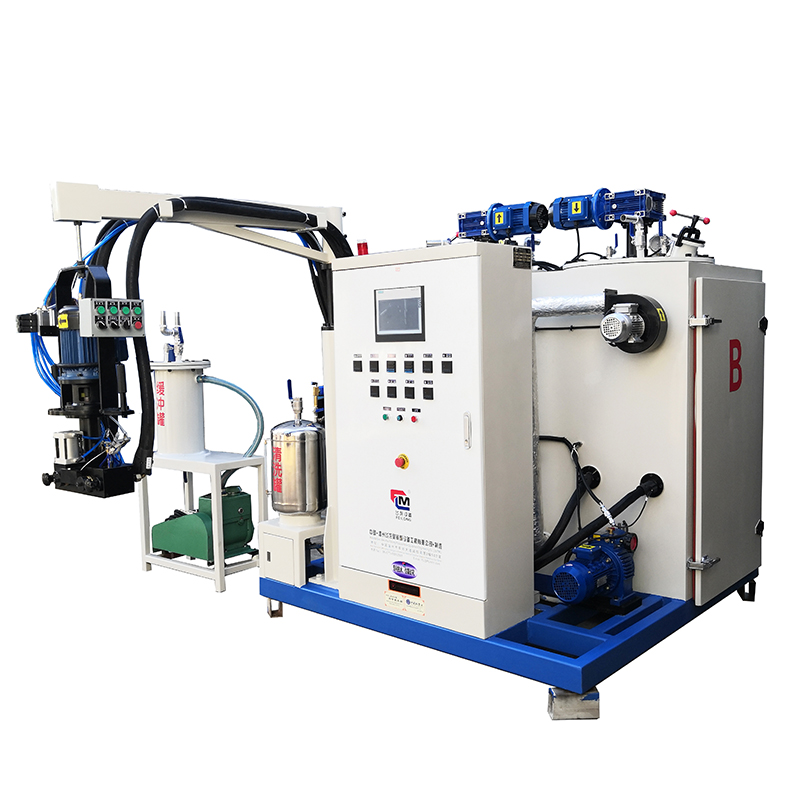

TARGETED MACHINE SERIES FOR RAILWAY AND BRIDGE SEAM FILLING

For the production of TDI products by the MDI type prepolymer method. Mainly used for railway, bridge seam filling use.

联系我们附件下载

主要用途

For the production of TDI products by the MDI type prepolymer method. Mainly used for railway, bridge seam filling use.

产品特点

-The whole machine layout is reasonable and can be constructed with the box or truck.
-Accurate measurement: using high precision low speed gear pump, error of 5 ‰.
-Even mixing: using multi-tooth high shear mixed head, reliable performance.
-Pour head: use floating mechanical seal to prevent feeding.
-Using oven type heating, fan circulation, energy saving and power saving, compact appearance.
-Products macroscopic bubbles, with vacuum degassing system.
-The whole system is controlled by PLC LCD screen, with good handling and high degree of automation.

主要参数

Model / Type	CPU20FM-1	CPU20FM-2	CPU20FM-3	CPU20FM-4	CPU20FM-5
Output capability (g / min)	240~900	900~3000	1800~5400	3000~9000	6000~15000

工艺参数

Component name	Mixing ratio (adjustable)	Operating temperature (℃)	viscosity (CPS)
polybasic alcohol	100	Normal temperature ~80	<5000
modified MDI	22~105	Normal temperature ~80	<1000
