聚氨酯离心成型机

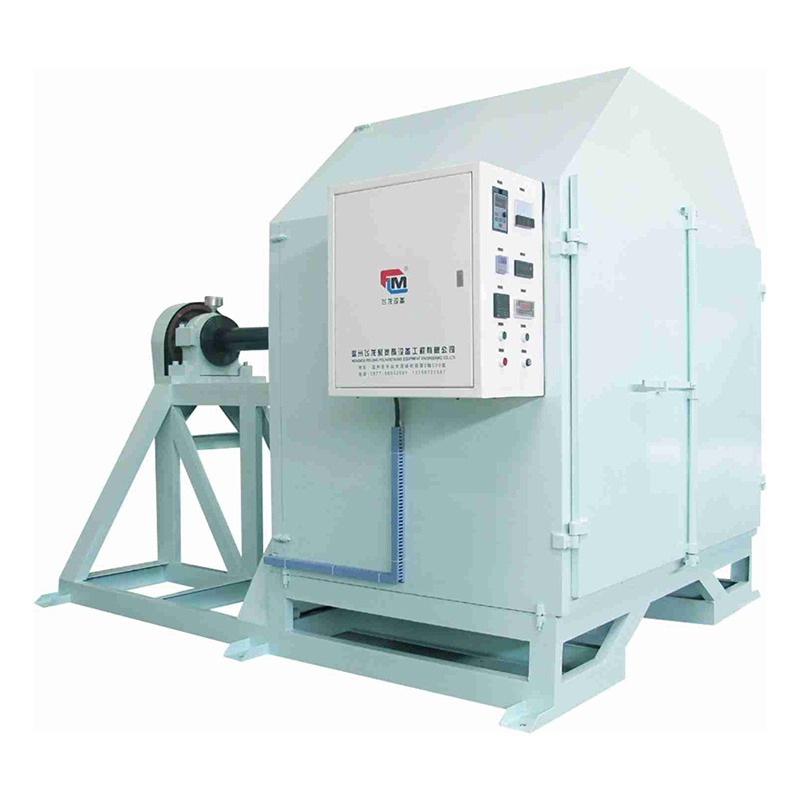

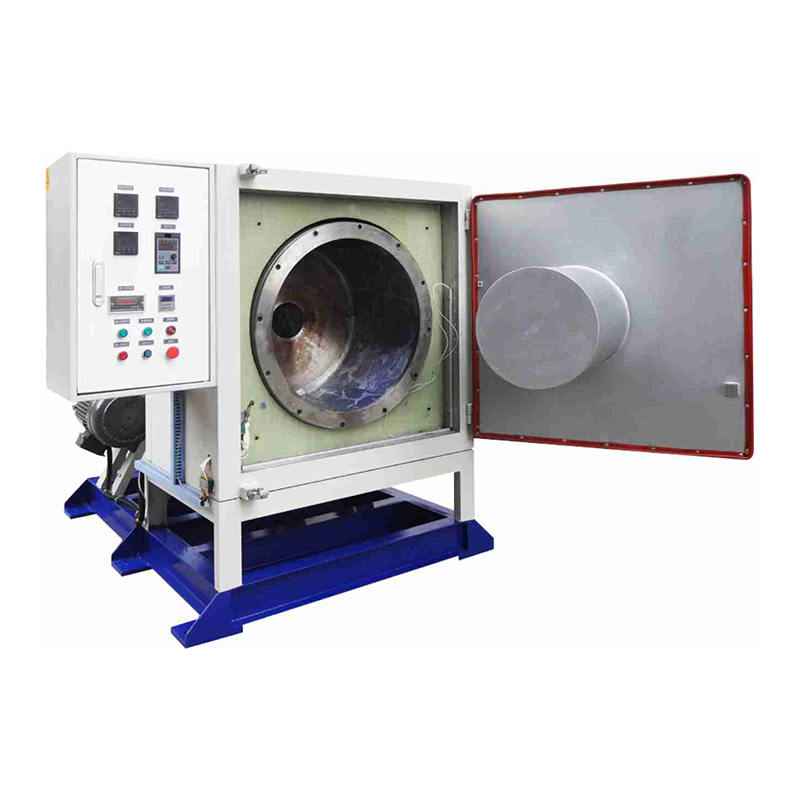

POLYURETHANE CENTRIFUGAL MOLDING MACHINE

Production of polyurethane elastomer sheet with film thickness of 1-20mm.

联系我们附件下载

主要用途

Production of polyurethane elastomer sheet with film thickness of 1-20mm.

产品特点

-This machine can ensure the production of high quality cast polyurethane elastomer (CPU) film, Shaw A hardness uniform, smooth surface.
-Centrifugal roll is simple with electric heating, automatic temperature control, convenient adjustment, accurate temperature control (due to the heating temperature and temperature difference on the performance and degree of the sheet, the hardness of the high temperature is low), the heating temperature is 100-150℃± 5℃.
-Reasonable design, precision manufacturing, using frequency conversion speed regulation, axial beating 0.05mm, drum inner surface polished.

主要参数

Model / Type	CPU-LX-500	CPU-LX-700	CPU-LX-1000	CPU-LX-1300	CPU-LX-14100	CPU-LX-16500
Outer diameter and length of the cylinder (mm)	Φ500*420	Φ 700*770	Φ 1000*650	Φ 1300*1020	Φ 14100*800	Φ 1650*640
Size of the sheet (L * W)	1500*420	2100*770	3000*650	4000*1020	4400*800	5090*640
