聚氨酯高效节能直热式平板硫化机

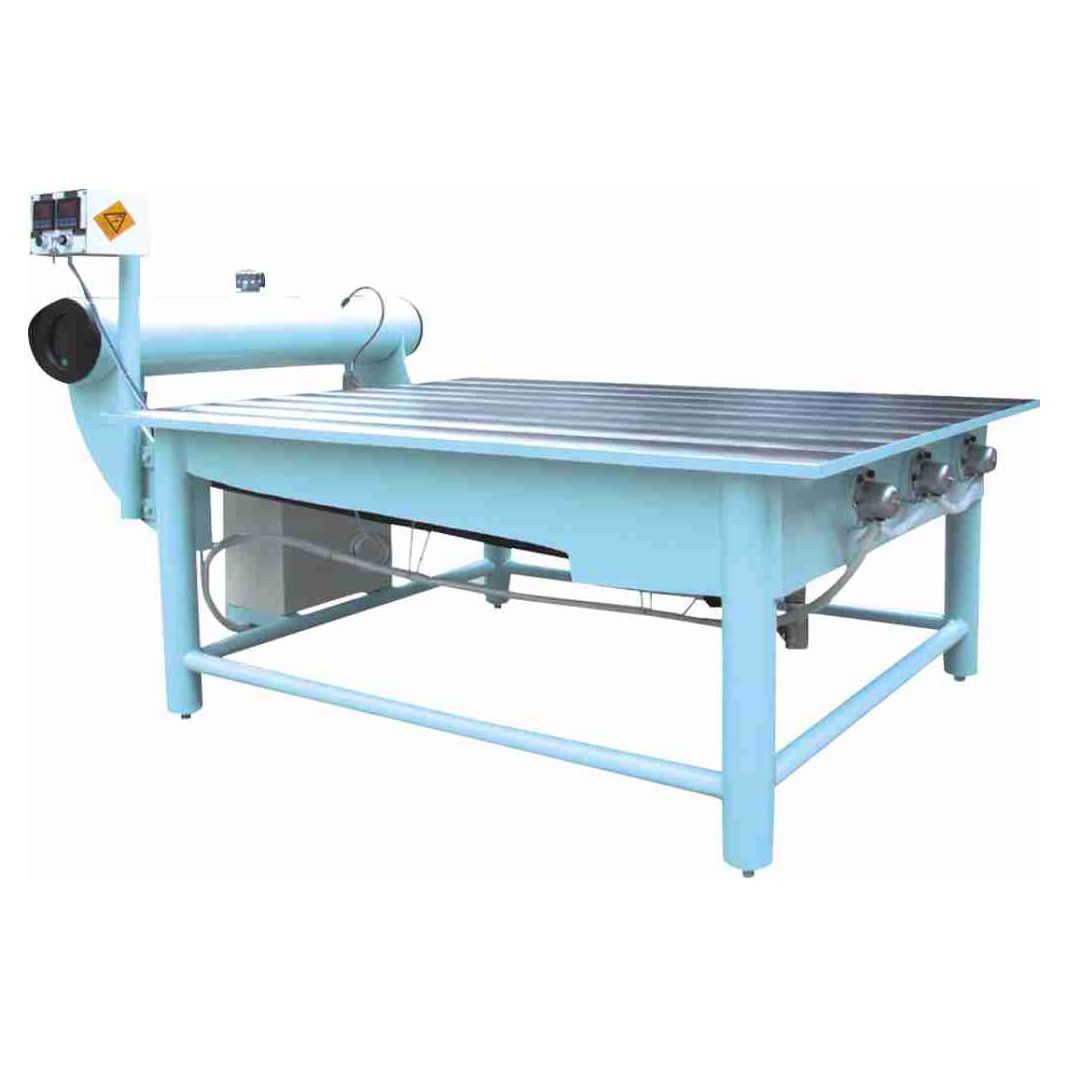

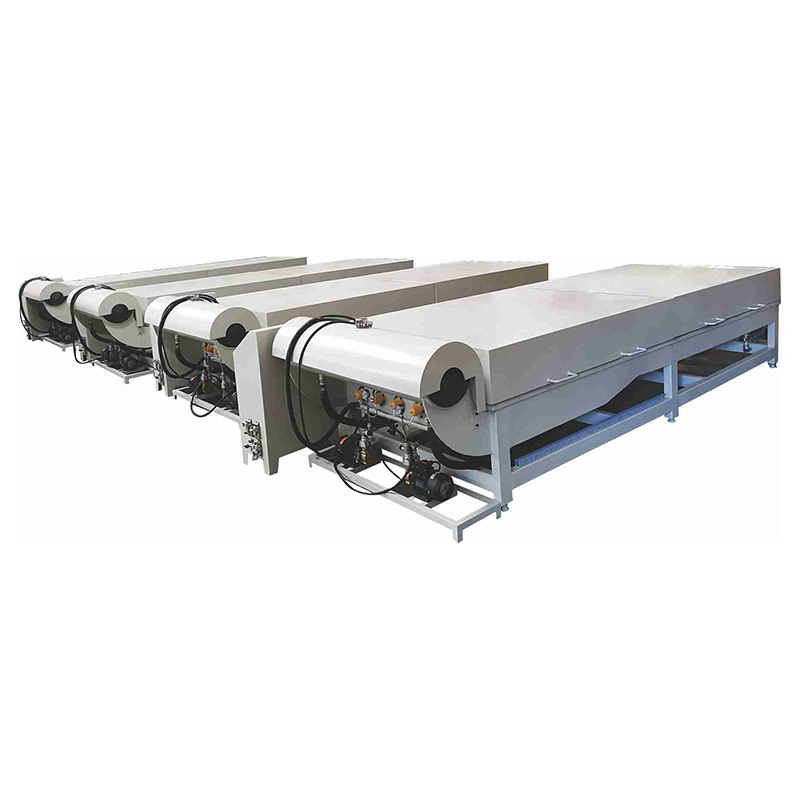

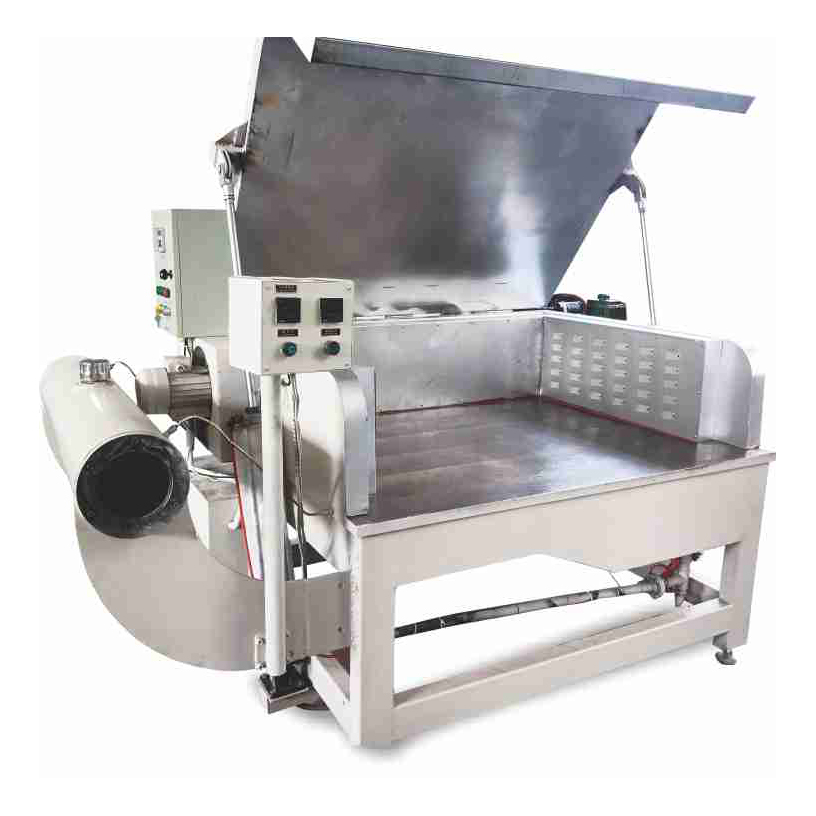

POLYURETHANE HIGH EFFICIENCY AND ENERGY SAVING DIRECT HEAT PLATE VULCANIZER

For pouring polyurethane elastomer (CPU), mold preheating and shaping vulcanization after glue injection. Such as industrial rubber roller, mining screen plate, hydraulic sealing ring, photovoltaic guide wheel, etc.

联系我们附件下载

主要用途

产品特点

-The flat plate vulcanization machine adopts the built-in electric heating thermal oil tank and plate integration design. The fuel tank adopts polyurethane Rigid foam insulation. The sulfide plate has fast overall heating speed, less power consumption, high efficiency, and plays an obvious role in high efficiency and energy saving.
-The expansion oil tank plays the role of refueling, oil spill, oil filling and exhaust.
-The expansion tank and the electric control cabinet are integrated design, making the whole machine compact structure, simple process and reliable performance.
-Optional insulation cover, effectively prevent heat loss, make the temperature more uniform, improve the product.

主要参数

Model / Type	PL-1000	PL-1200	PL-1400	PL-1500	PL-1900	PL-2800
Plate size (length x width) (mm)	1000*1200	1200*1200	1400*1400	1500*1200	19000*1000	2800*1500
)Note: Common size (customizable)
